Pony P3.0 MAX

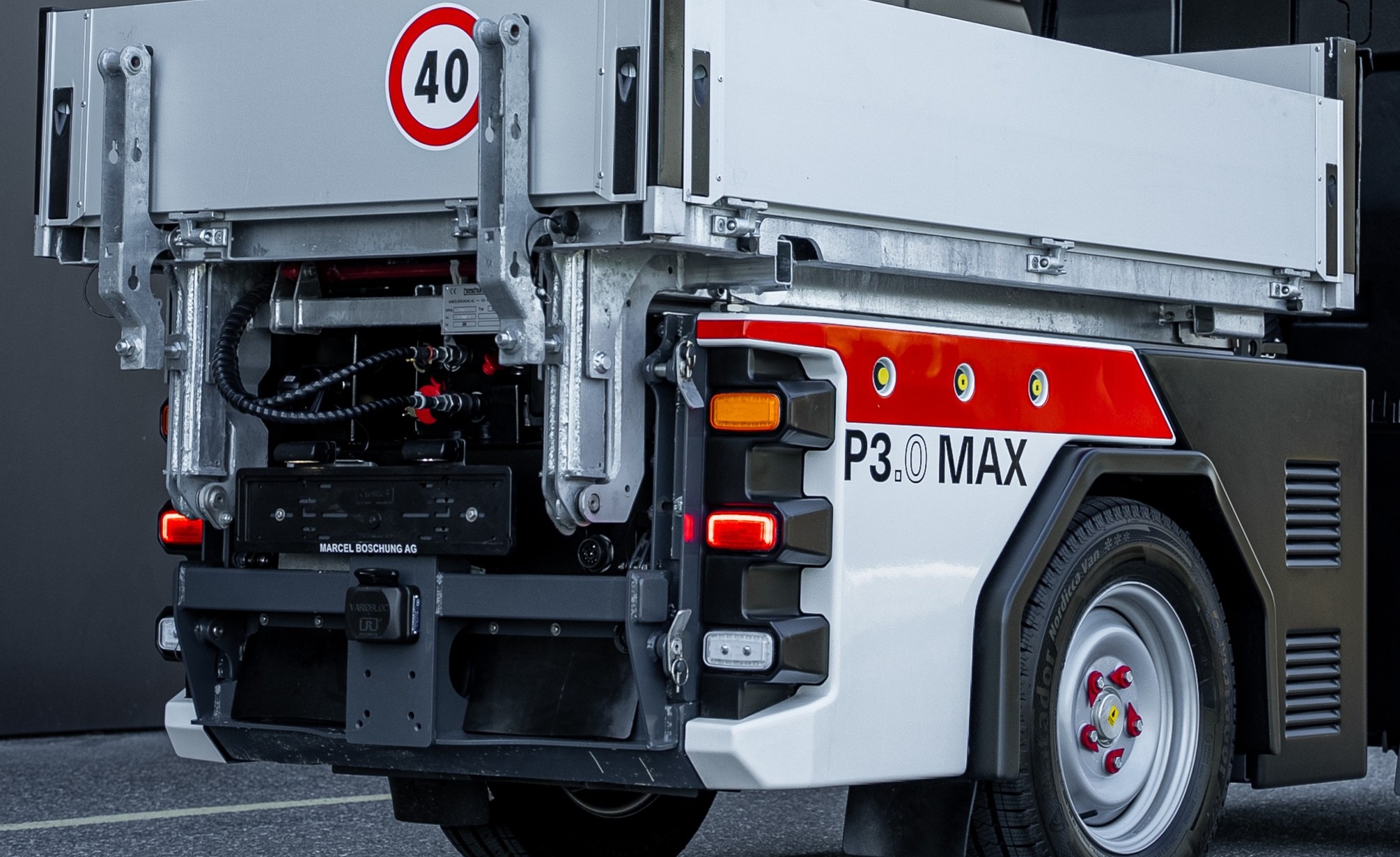

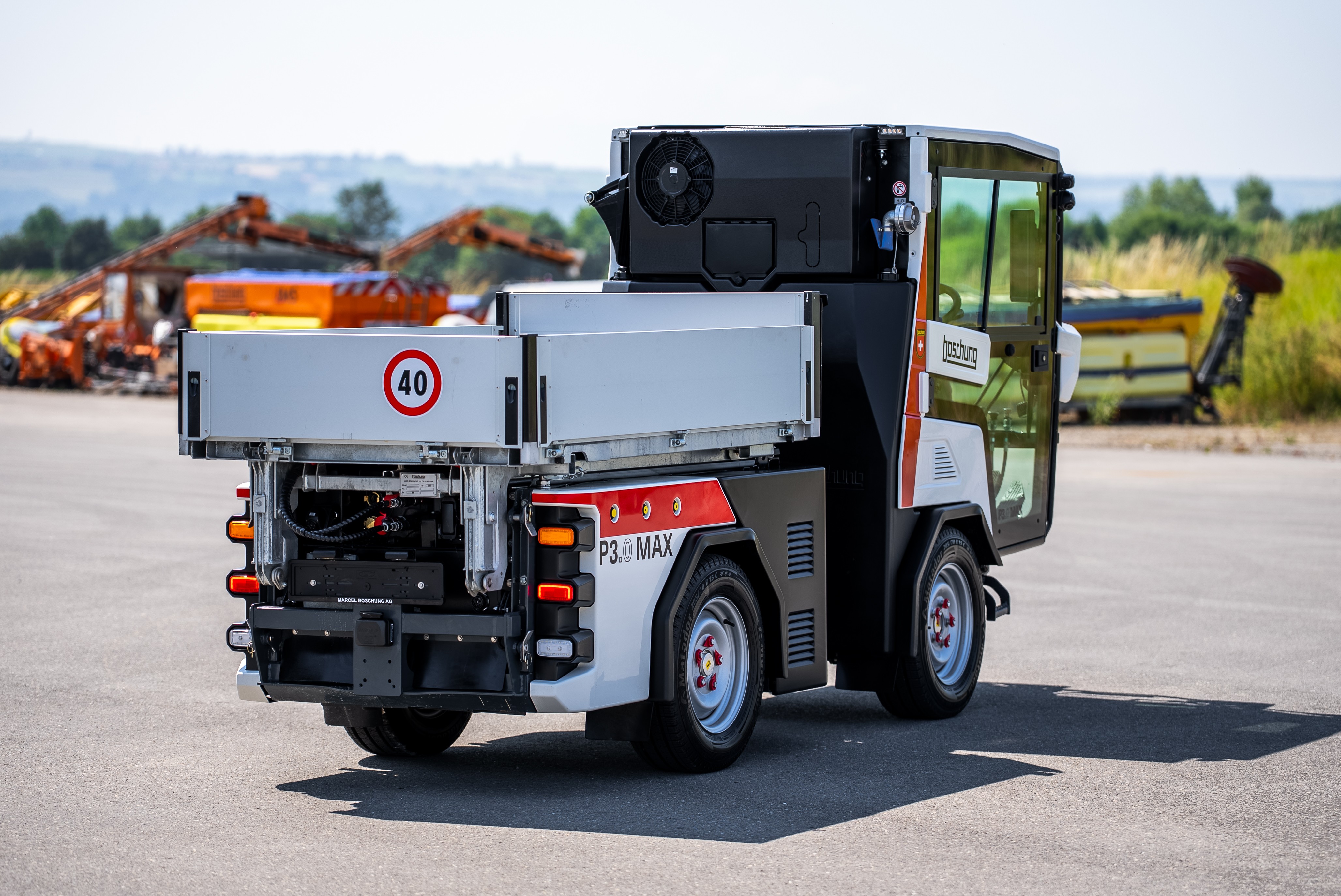

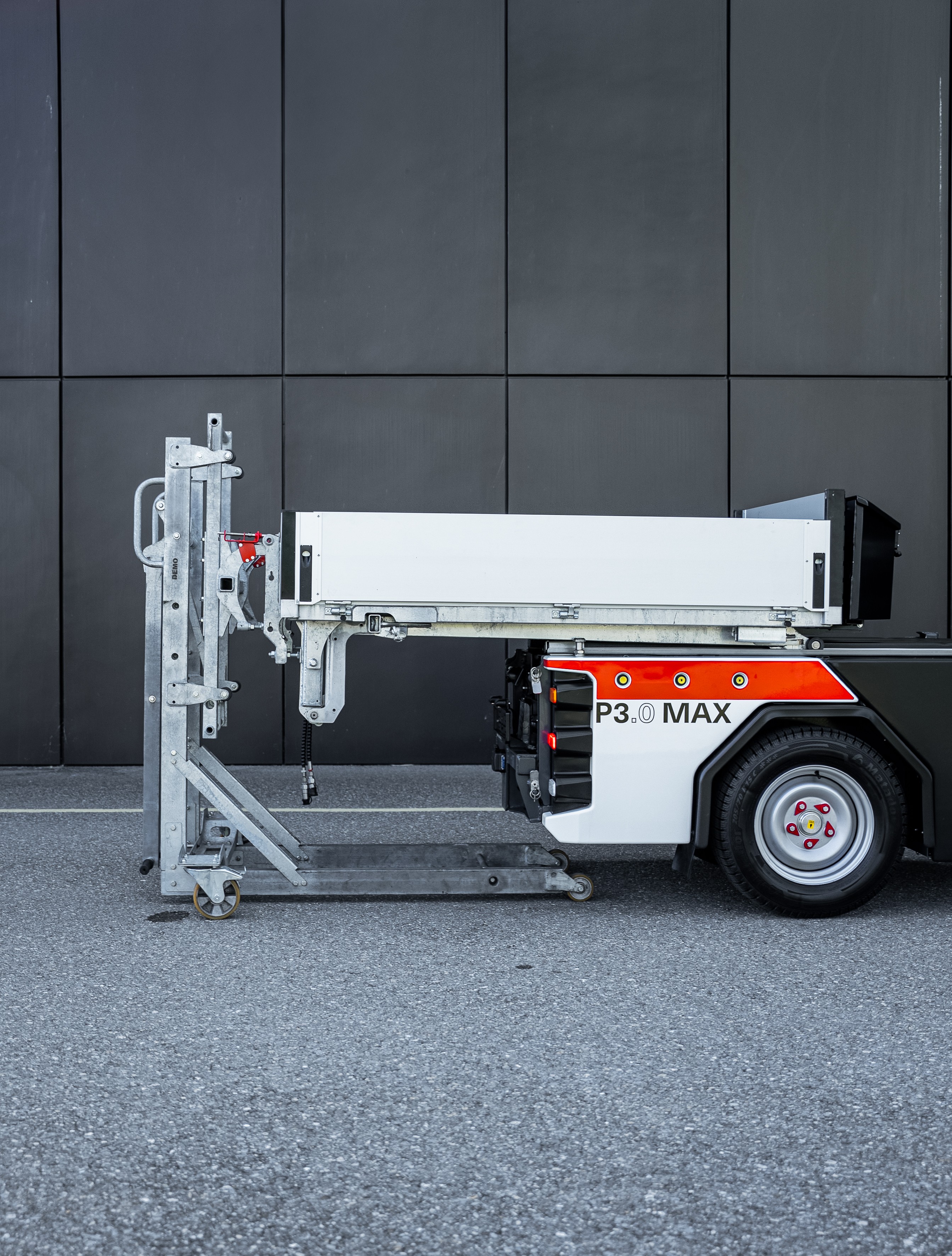

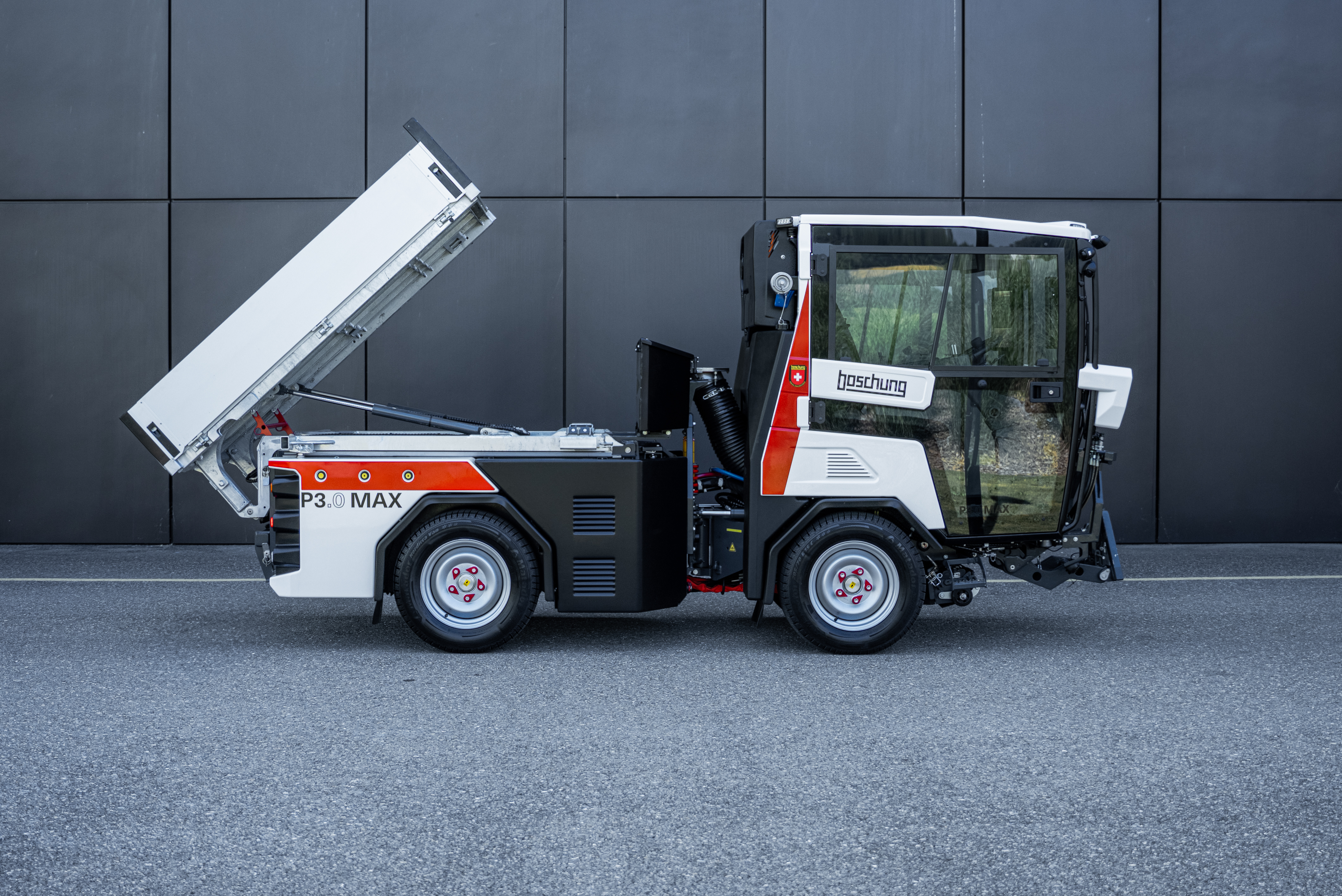

Made out of a galvanized frame with an aluminium floor plate the tipper body can be used to transport bulk items or fill up the rear mounted spreader on the go.

• Width 1,150 mm
• Length 1,925 mm
• Depth 300 mm

The vehicle can be optionally equipped with a trailer hitch (ball head), with a drawbar load of 150 kg and a trailer weight of max. 2,100 kg.

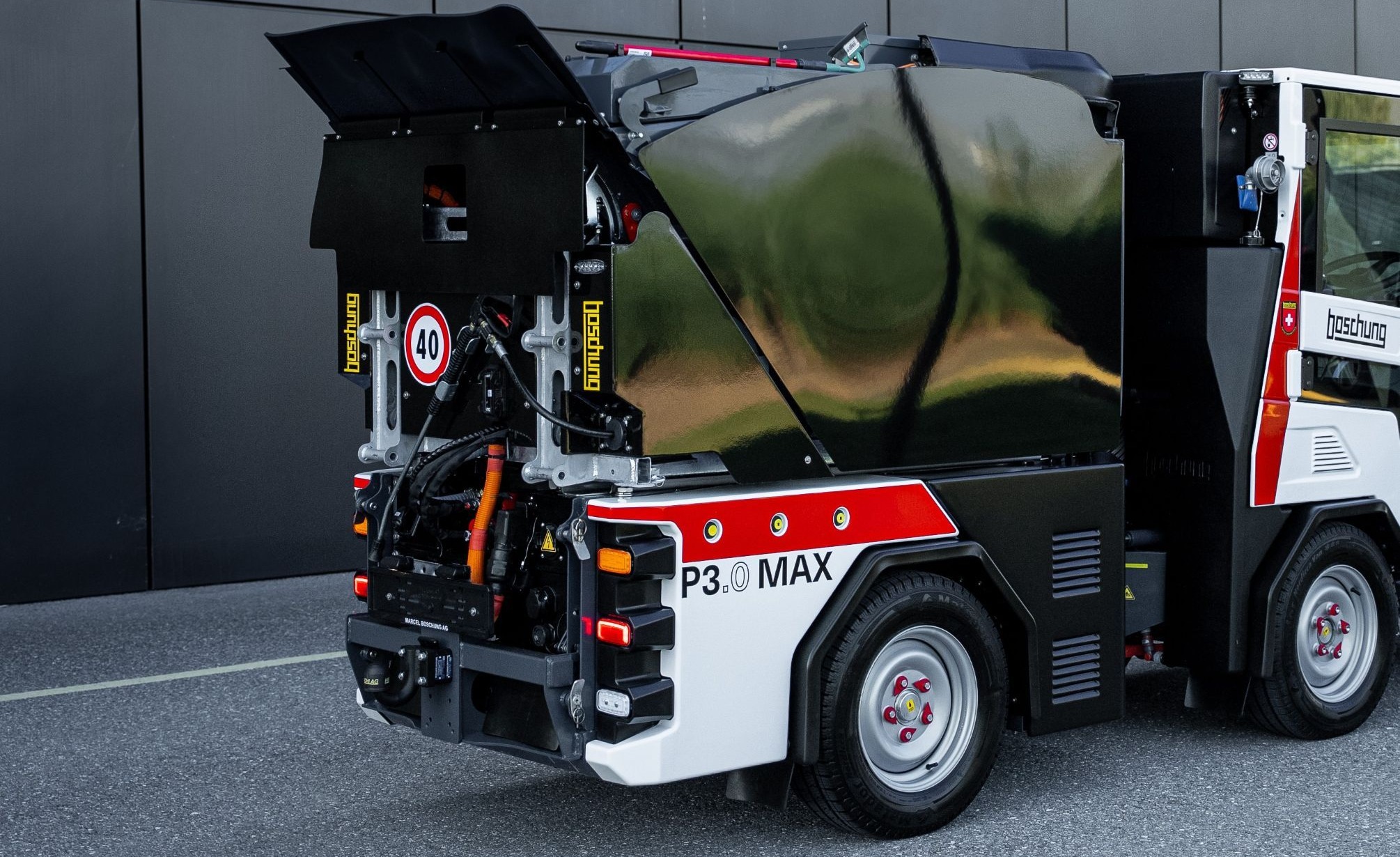

Built out of aluminum, the ultra-light 2 m3 Universal Hopper can be used for different applications such as sweeping, mowing or scrubbing. The electrically driven turbine enabling the most powerful suction force and strategically placed on top of the hopper delivers vacuum and airflow granting exceptional sweeping performances, leaving no chance to dirt. The hopper can tilt up to a height of more than 1,600 mm to ensure the collected waste can be emptied properly into a container. Cleaning of the small particles is done by simply applying water pressure into the filtering grates without having to open any hatches or doors. No filter replacement is ever needed.

• Capacity 2 m3

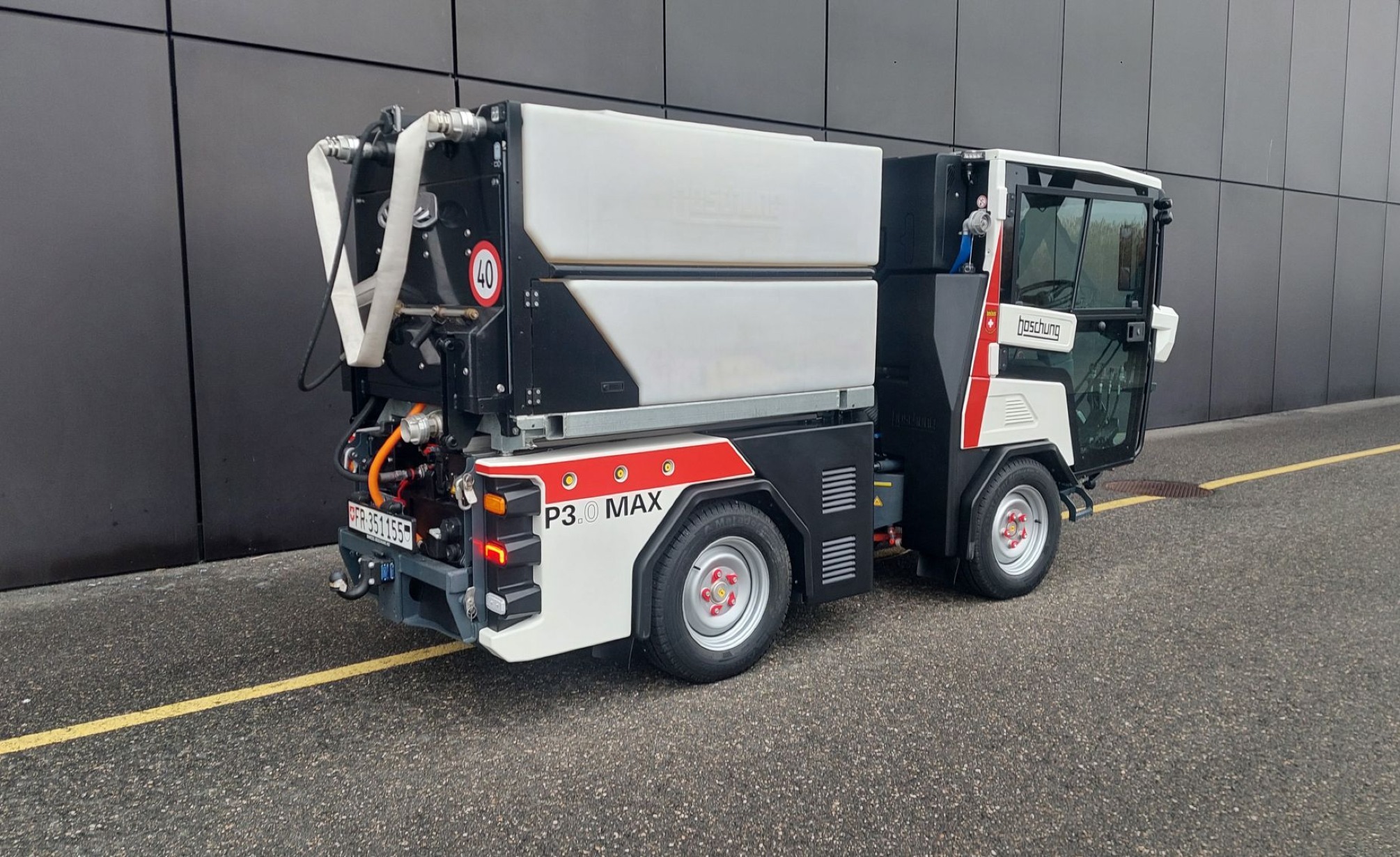

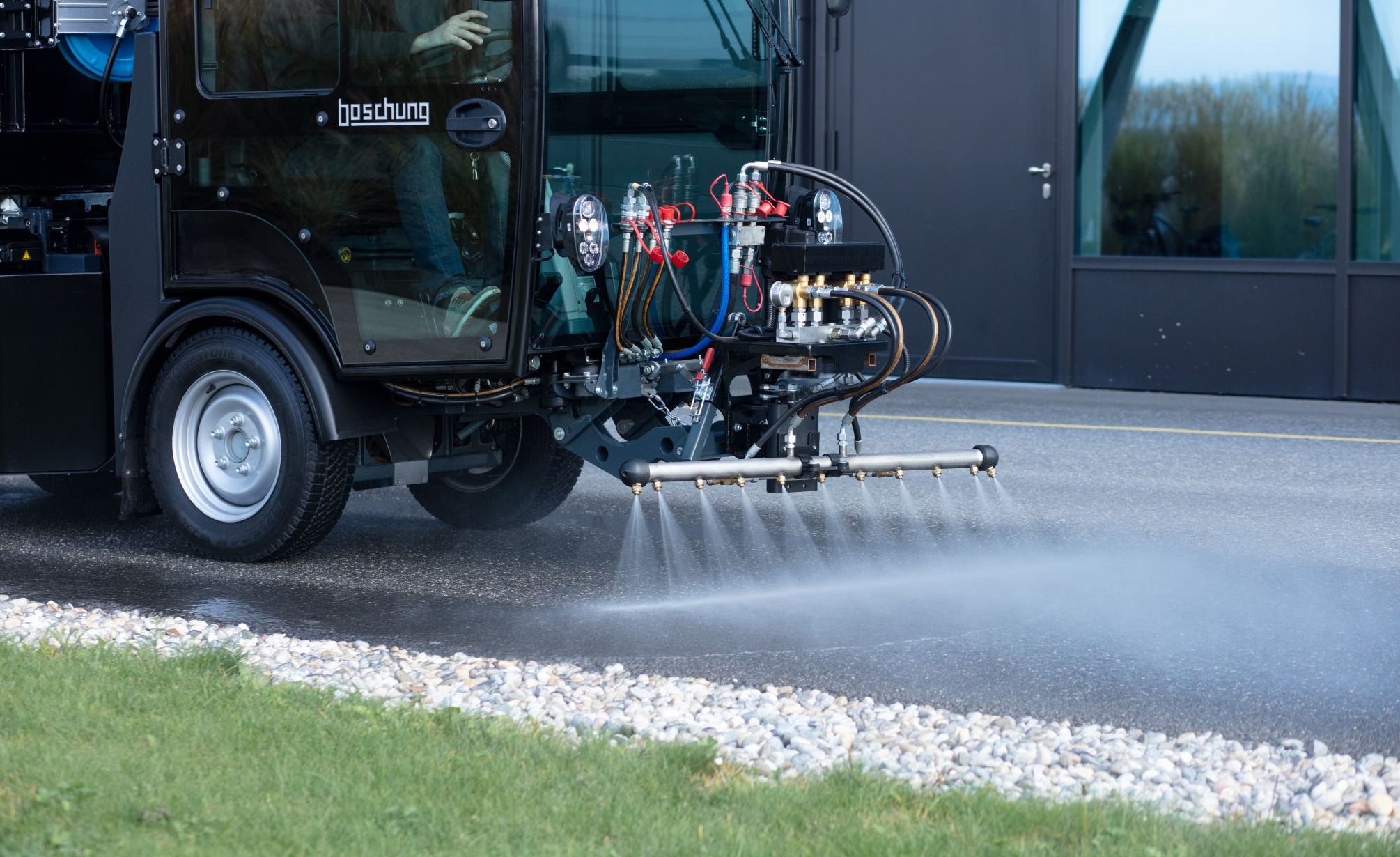

The electrically driven high-pressure pump installed in the tank assembly allows high pressure washing with an adjustable water flow for optimum cleaning with as little water as necessary. The water tank can hold up to 1,400 l. Side nozzles, high pressure cleaner spray heads and various containers for disinfectants are available as options.

• Washing bar width 1,200 mm - 1,400 mm

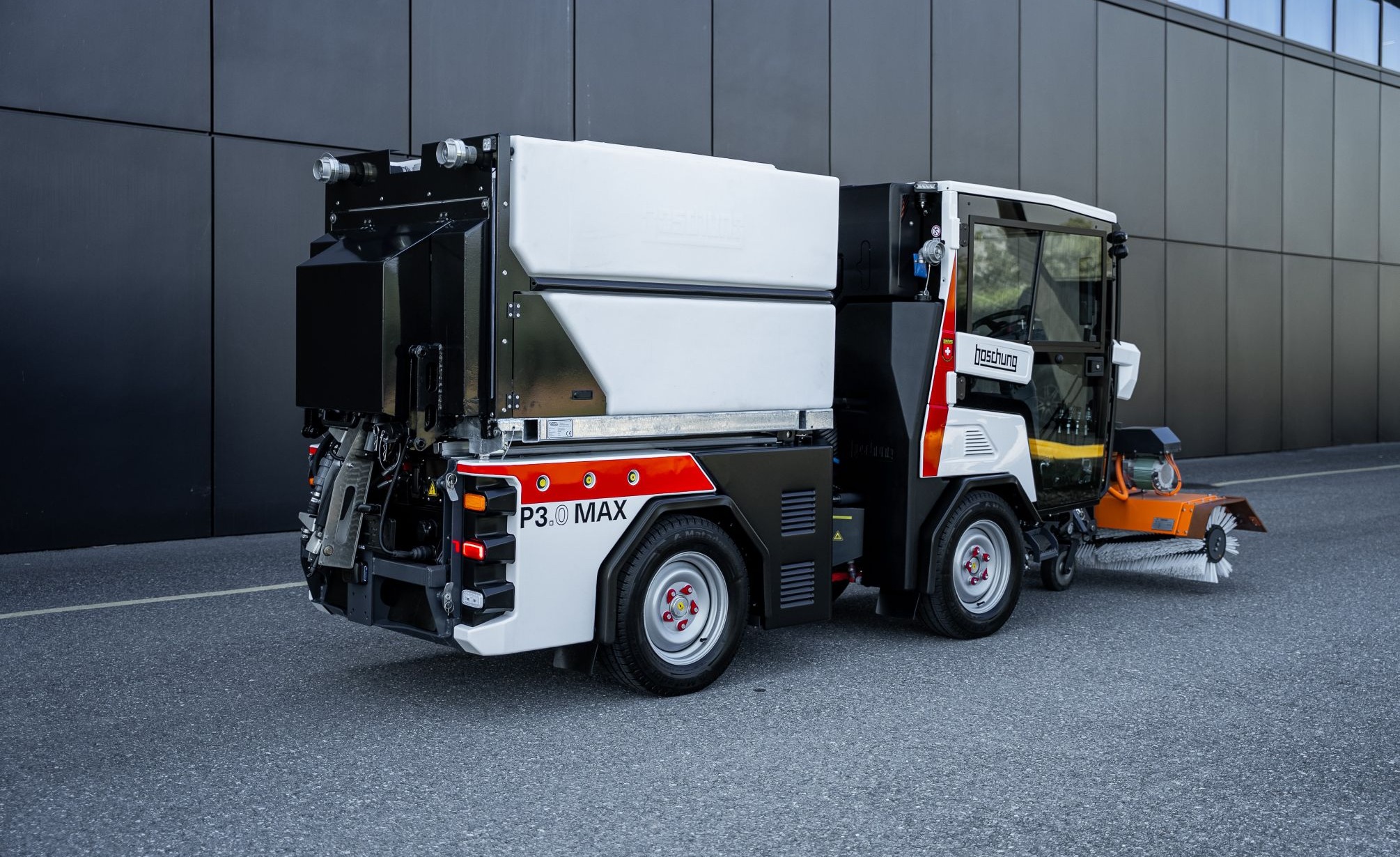

The ultra-lightweight plastic tank is used in the warm season for watering and in winter service for FullWet® brine spraying - with rear-mounted spray bar - and holds up to 1,400 liters of water, with an additional 190 liters of fresh water in the tank behind the cab. The high-pressure pump installed in the tank allows a flow rate of up to 94 l/min.

The optional high-pressure lance with a hose length of 10 m also becomes a pouring arm by simply turning the tip. The boom, which can be svivelled by 160°, allows access to every corner.

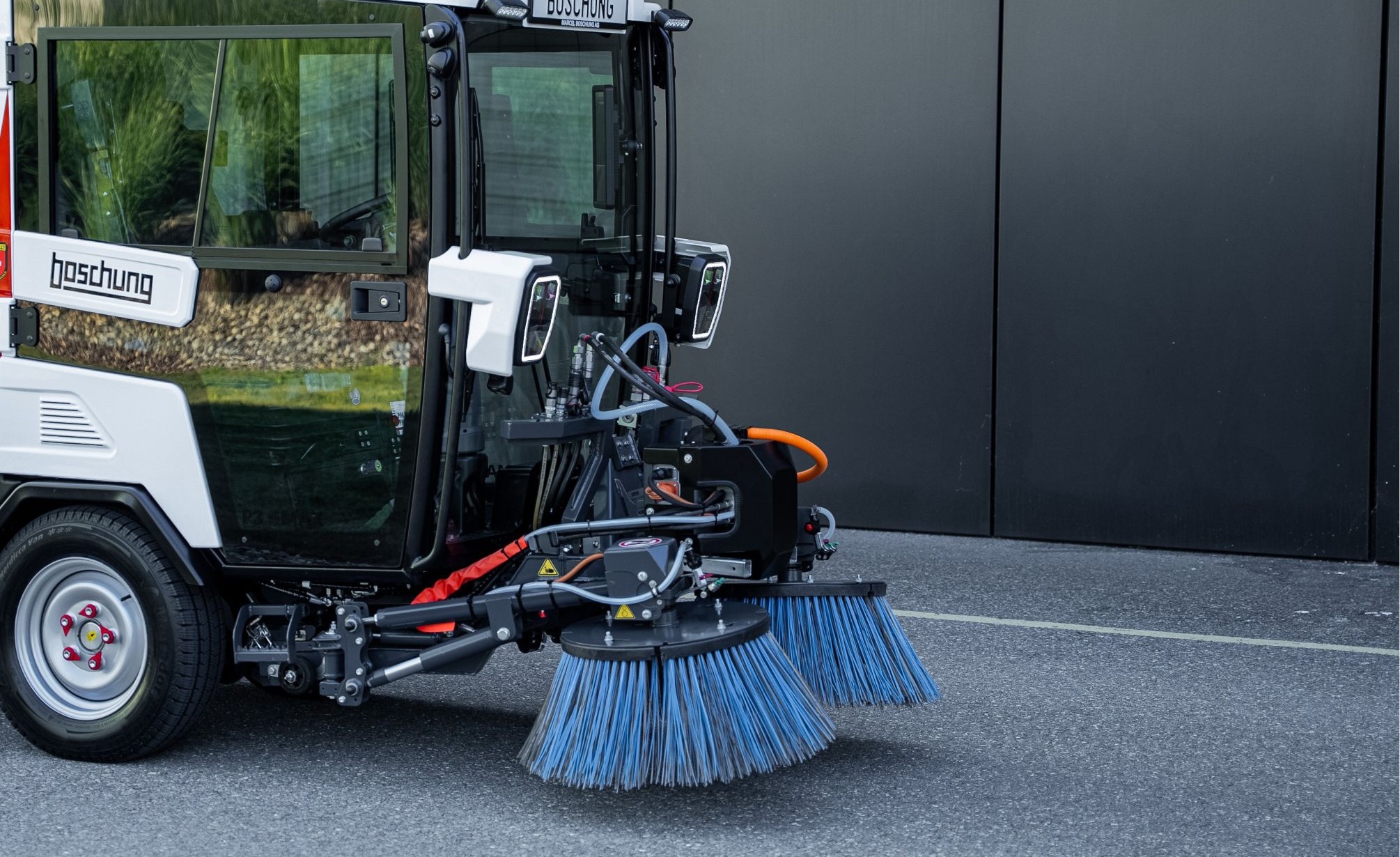

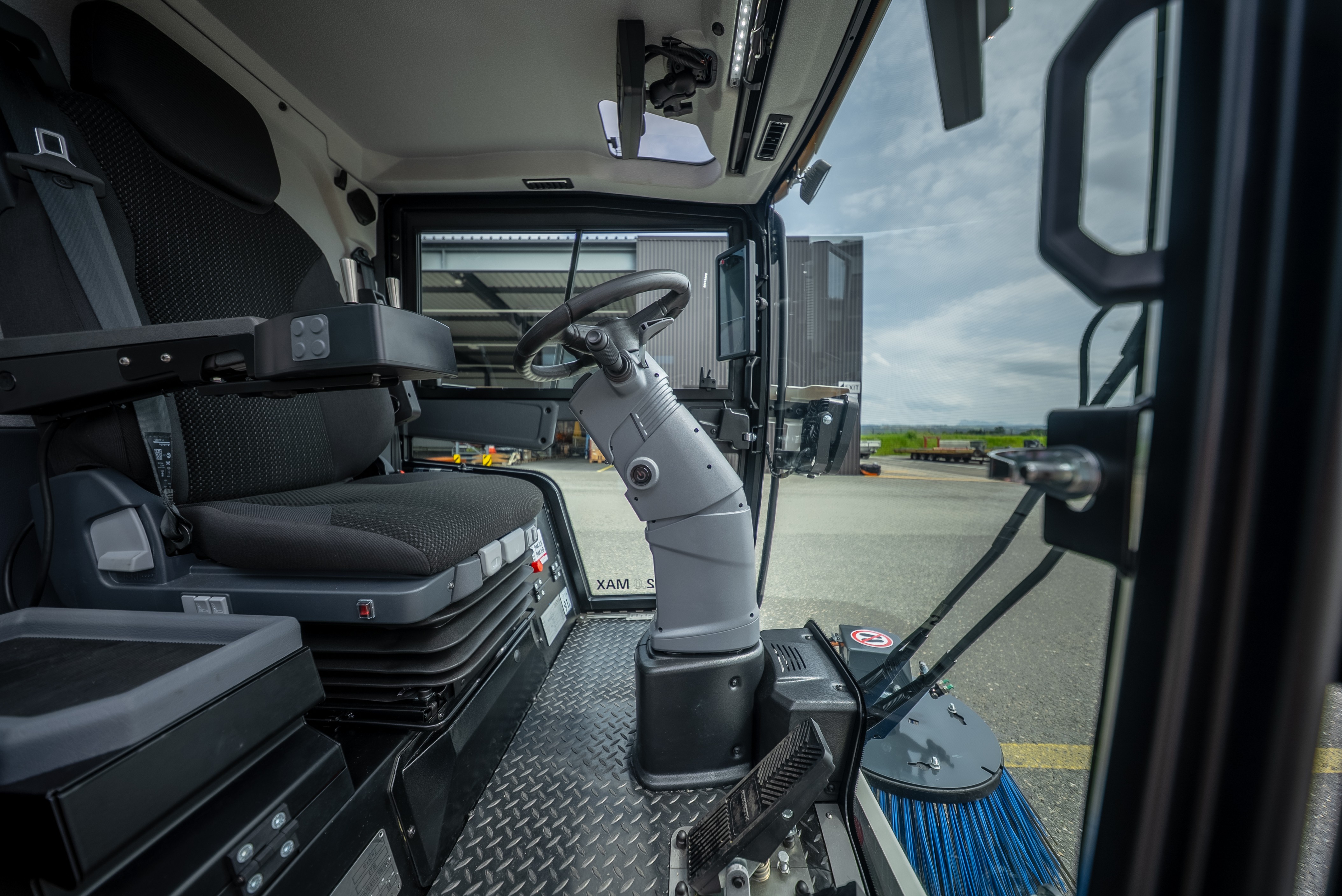

Installed directly onto the front mounting triangle the sweeper brushes are driven by two separate electric motors. The arms are controlled by the double joystick and are adjusted individually. Working width and ground pressure can easily be fine-tuned. The arms are equipped with a mechanical front shock absorber and side collision protection. Dirt is sucked into the suction mouth and transported to the hopper via the suction pipe. Thanks to the pressurised recycling water system from the universal hopper and the pressurised fresh-water application with two nozzles at each brush, the emission of fine, harmful dust is reduced to a minimum by a certified system with the highest level of PM10 4-star and PM2.5, a distinguished quality standard throughout Europe.

• Sweeping width from 1,200 mm to 2,100 mm

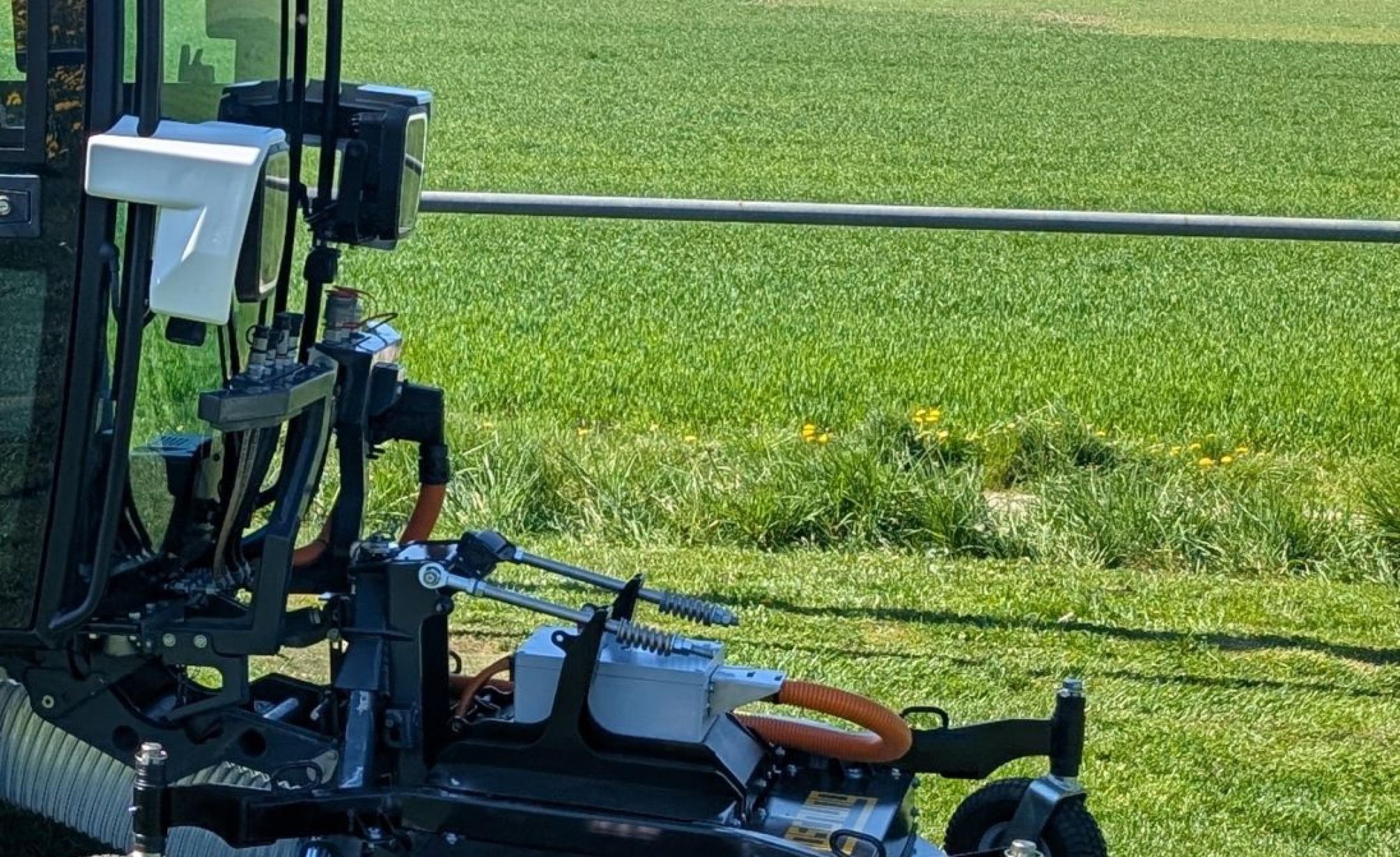

Fixed onto the front mounting triangle the mowing unit transforms the Pony P3.0 MAX into a heavy duty, large area lawn mower in just a few minutes. Equipped with three blades it is completely electrically driven end easily adjusted. The freshly cut grass is directly sucked into the universal container via a uniquelly engineered suction mouth.

• Mowing width 1,530 mm
• Cutting height from 30 mm to 90 mm

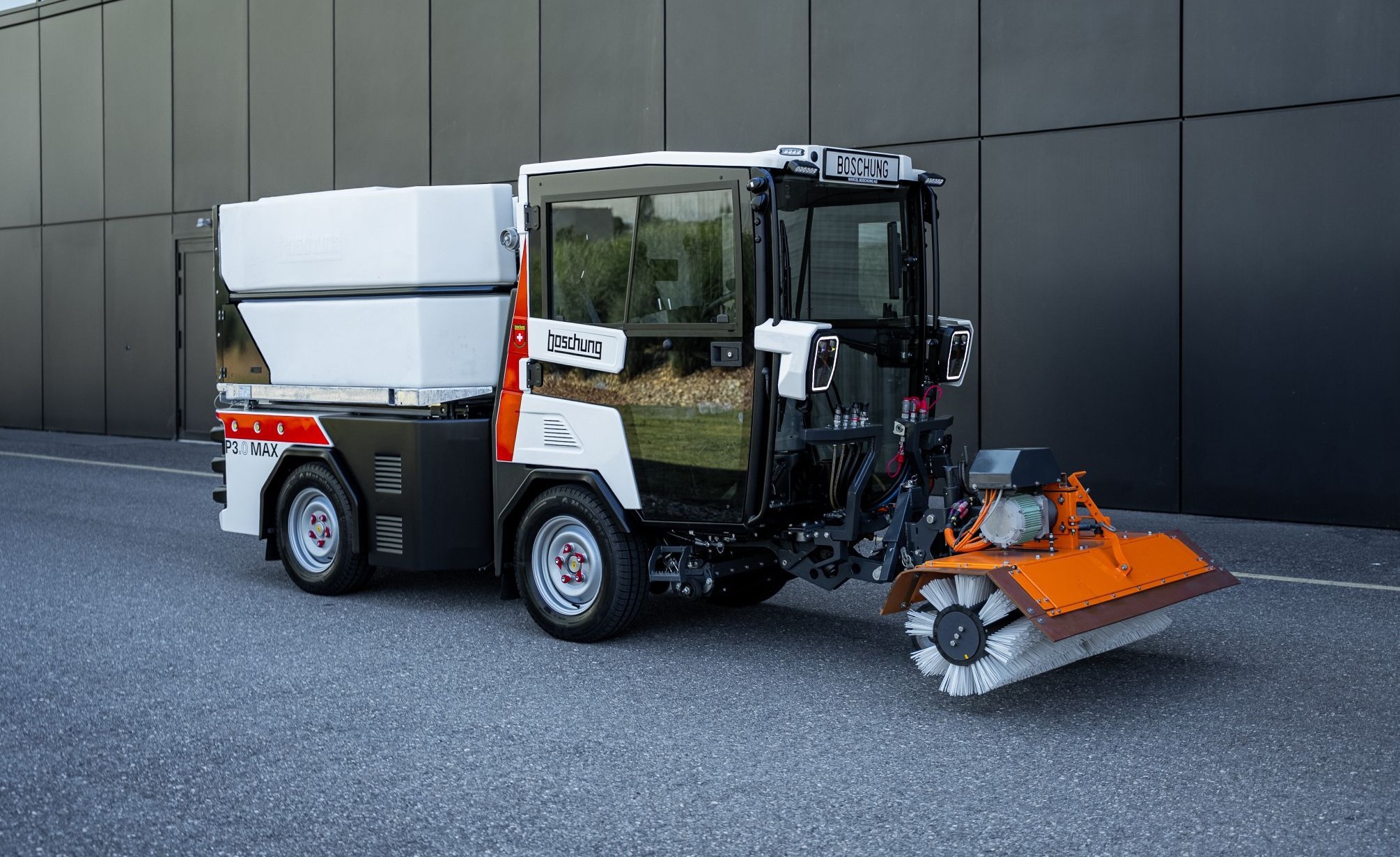

Directly mounted onto the front mounting triangle the fully electrically driven heavy duty front broom can be lifted, lowered and swivelled via the joystick control command for snow removal or dirt cleaning.

• Broom diameter 400 mm
• Broom width 1,300 mm
• Cleaning width 1,125 mm

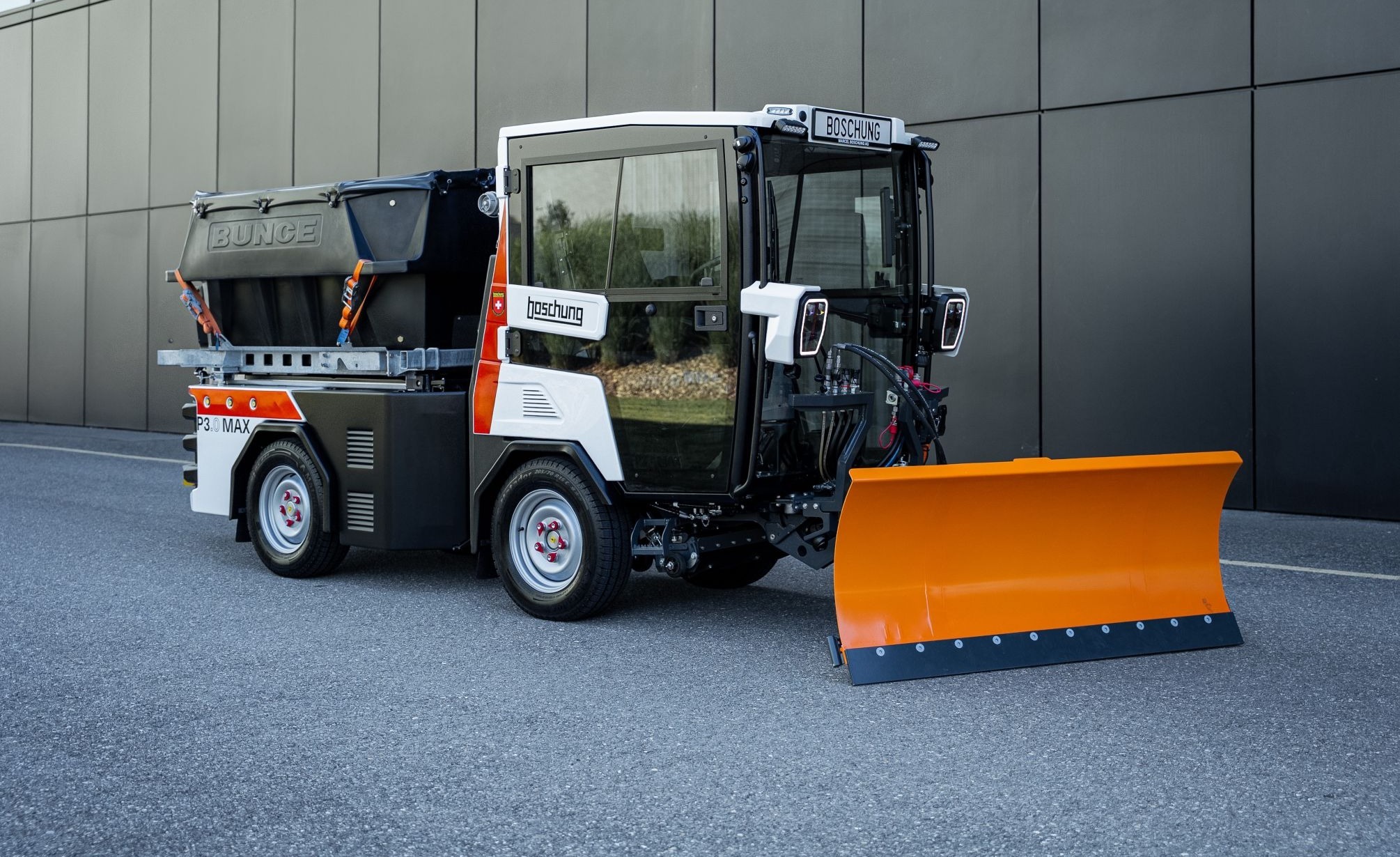

Attached to the front mounting triangle the straight snow plow can be lifted, lowered and swivelled via the joystick control command.

• Plow width 1,600 mm
• Plow height 640 mm
• Clearing width 1,370 mm

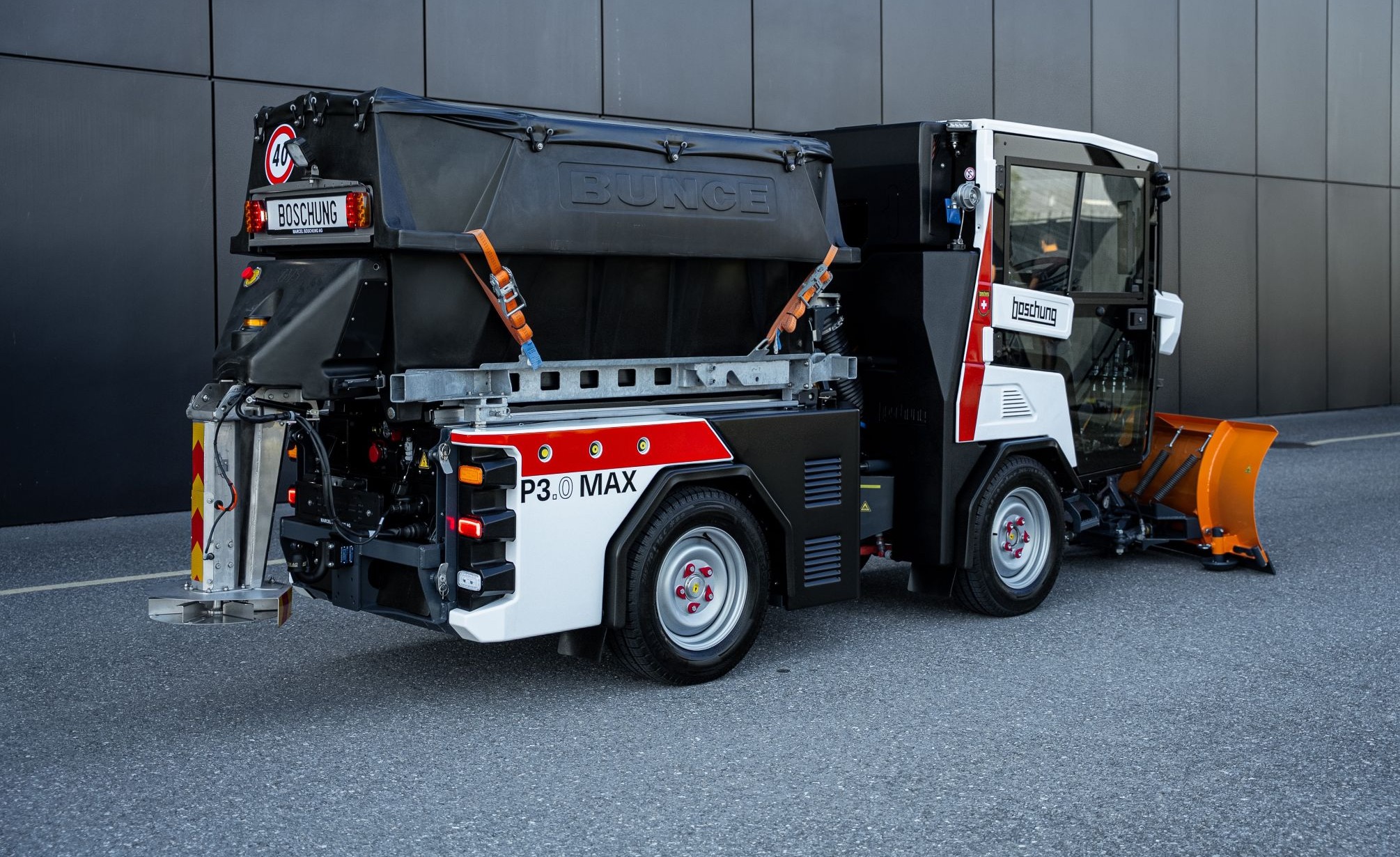

The ground speed controlled spreader can be used for solid or liquid de-icing.

• Capacity 550 l liquid or 800 l solid
• Spreading width up to 6,500 mm

• Capacity from 1,400 l
• Spraying width 1,000 mm - 3,000 mm

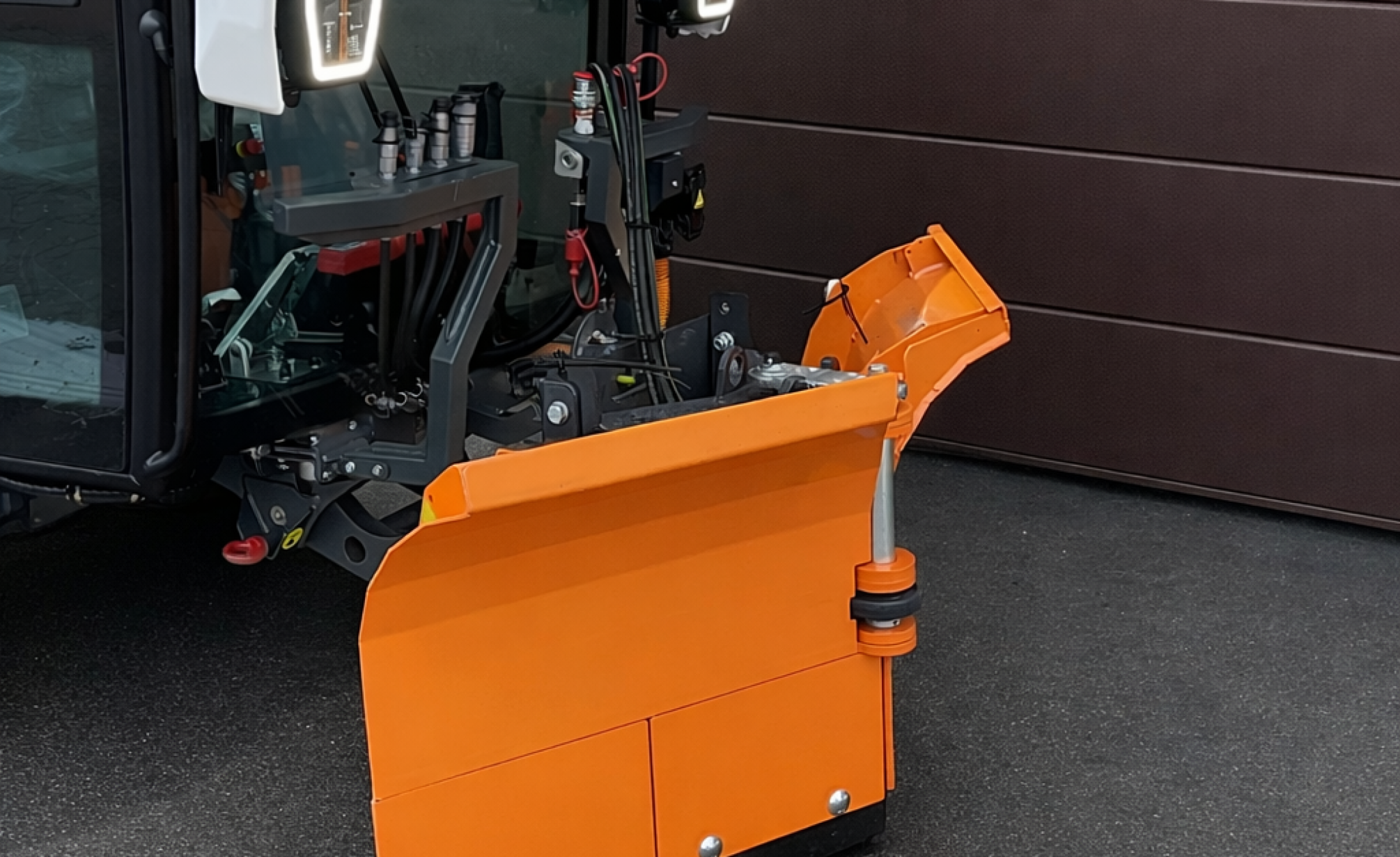

Combi snow plow (snow blade and/or wedge plow) for the front coupling triangle, with double-acting swivel cylinder and collision protection, controlled via joysitck.

• Plow widths 1,600 - 1,800 mm
• Plow height 810 mm
• Clearing width 1,380 - 1,580 mm

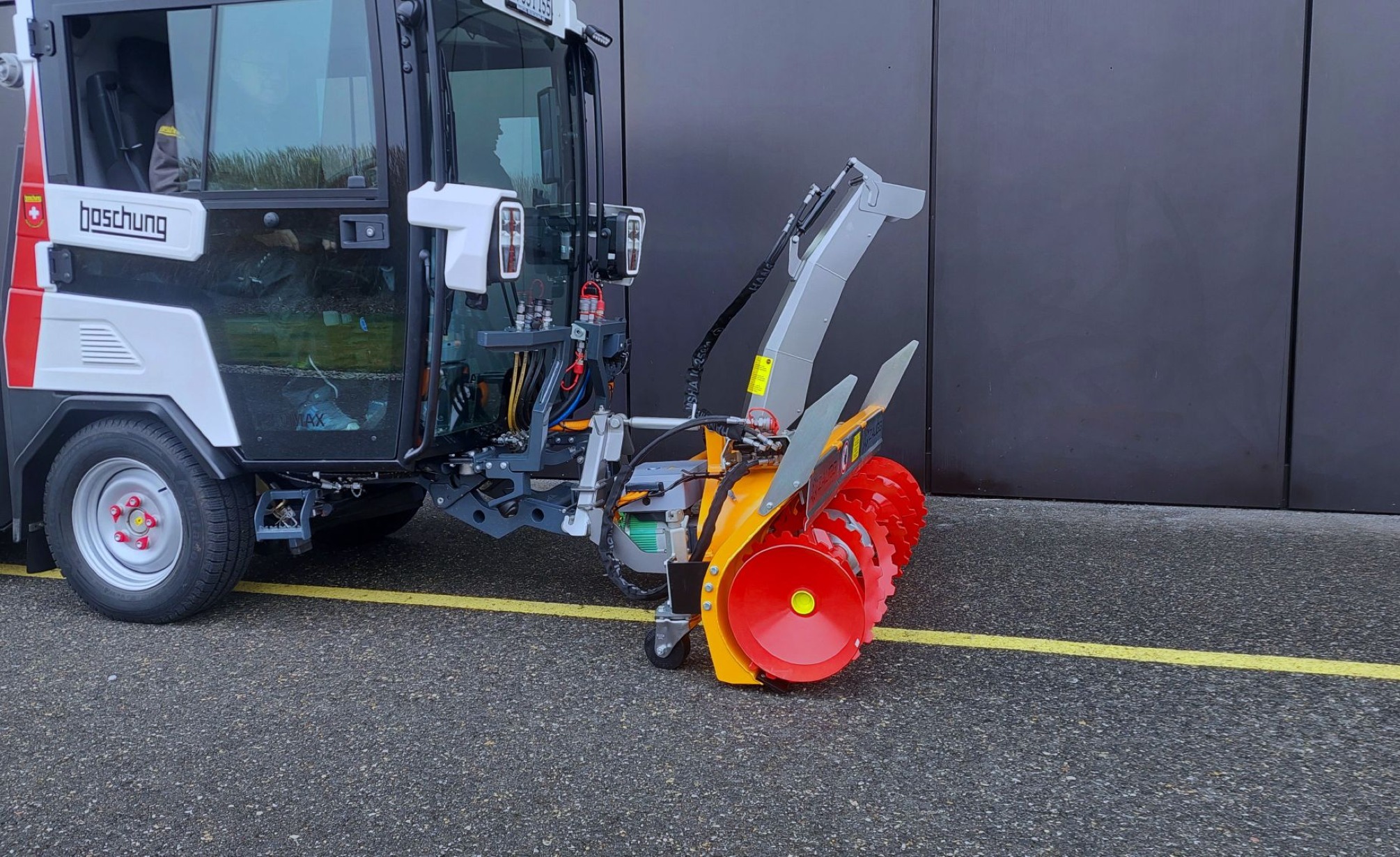

Mounted on the front triangle, the snow blower can be lifted and lowered via the joystick control command. Furthermore, the ejection chute can be rotated and the flap positioned.

• Width 1,330 mm
• Height (incl. ejection chute) 1,420 mm
• Cutting width 1,300 mm

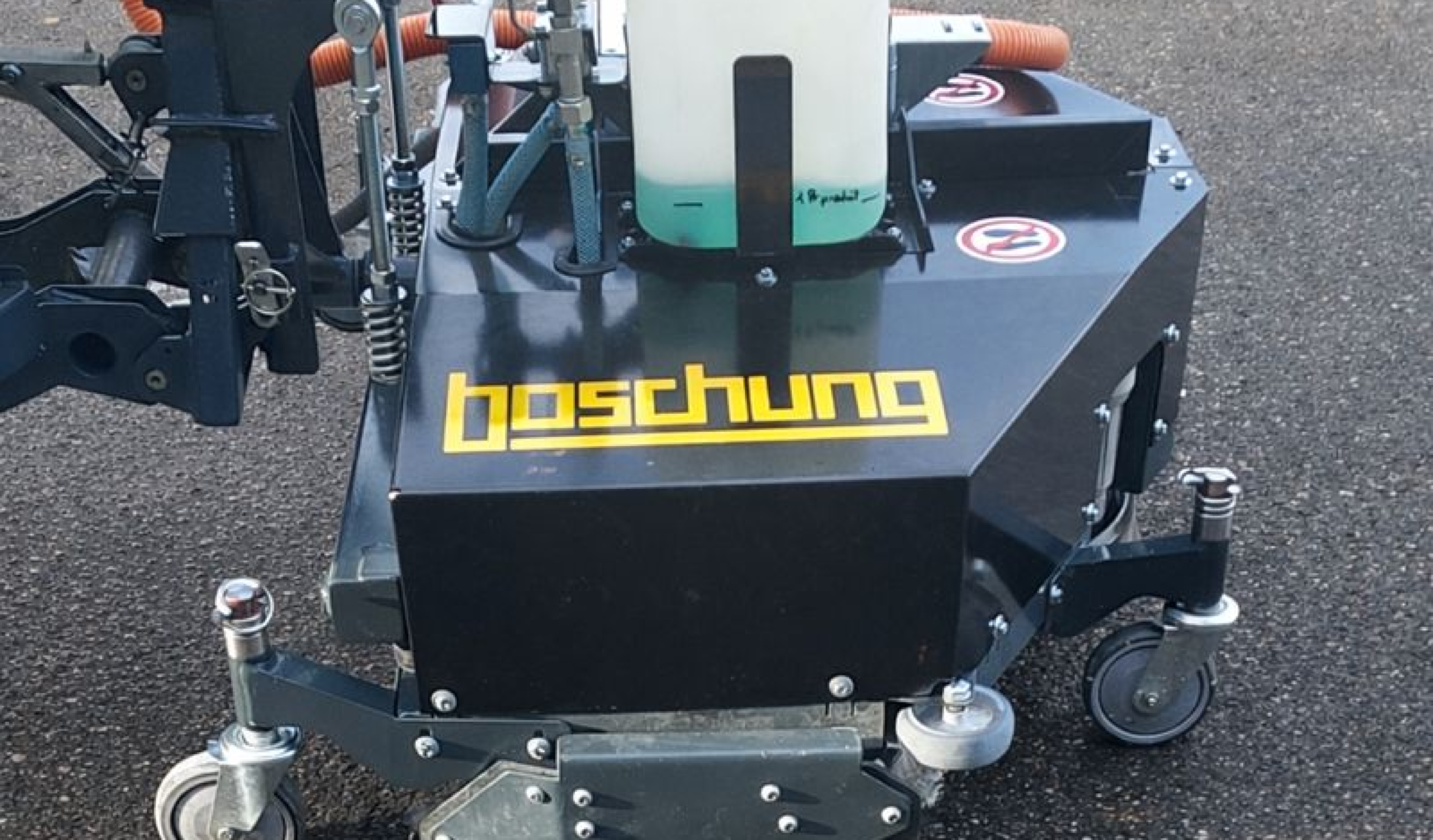

The scrubber unit is designed for cleaning smooth surfaces such as marble, granite, and similar floor coverings, and is also suitable for use in underground parking garages as well as sports facilities with tartan surfaces. Cleaning is carried out using three rotating brushes, which are available with different bristle hardness levels depending on the type of floor. The brush pressure can be individually adjusted.

The water supply uses fresh or recycled water and can be supplemented with cleaning or disinfecting agents as required.

• Scrubbing width 1,230 mm
